MultiMotorController Class Reference

MultiMotorController class. More...

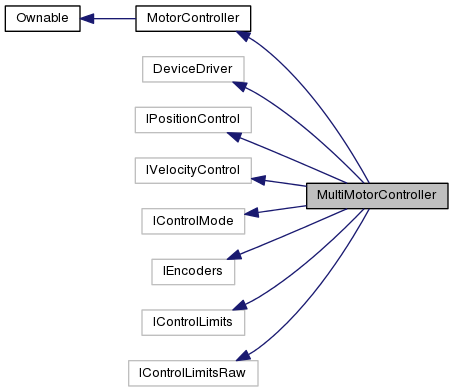

Inheritance diagram for MultiMotorController:
Inheritance graph
[legend]

Public Member Functions

 MultiMotorController (QVector< PhyDOF * > motors, World *world)
 Constructor.

virtual ~MultiMotorController ()
 Destructor.

QVector< PhyDOF * > & motors ()
 return motors controlled

QVector< wPID * > & positionPIDs ()
 return PID used for controlling motors with position modality

bool setEnableLimitsRaw (int axis, bool b)
 Enable/disable the limits for the corresponding joint.

virtual void update ()
 apply the torque on the basis of minimum-jerk trajectory

QVector< wPID * > & velocityPIDs ()
 return PID used for controlling motors with velocity modality

DeviceDriver Interface
virtual bool close ()
 close

virtual bool configure (yarp::os::Searchable &config)
 configure

virtual bool open (yarp::os::Searchable &config)
 open

Common Control Interface
virtual bool getAxes (int *ax)
 see YARP documentation

virtual bool getRefAcceleration (int j, double *acc)
 see YARP documentation

virtual bool getRefAccelerations (double *accs)
 see YARP documentation

virtual bool setRefAcceleration (int j, double acc)
 see YARP documentation

virtual bool setRefAccelerations (const double *accs)
 see YARP documentation

virtual bool stop (int j)
 see YARP documentation

virtual bool stop ()
 see YARP documentation

IPositionControl Interface
virtual bool checkMotionDone (int j, bool *flag)
 see YARP documentation

virtual bool checkMotionDone (bool *flag)
 see YARP documentation

virtual bool getRefSpeed (int j, double *ref)
 see YARP documentation

virtual bool getRefSpeeds (double *spds)
 see YARP documentation

virtual bool positionMove (int j, double ref)
 see YARP documentation

virtual bool positionMove (const double *refs)
 see YARP documentation

virtual bool relativeMove (int j, double delta)
 see YARP documentation

virtual bool relativeMove (const double *deltas)
 see YARP documentation

virtual bool setPositionMode ()
 see YARP documentation

virtual bool setRefSpeed (int j, double sp)
 see YARP documentation

virtual bool setRefSpeeds (const double *spds)
 see YARP documentation

IVelocityControl Interface
virtual bool setVelocityMode ()
 see YARP documentation

virtual bool velocityMove (int j, double sp)
 see YARP documentation

virtual bool velocityMove (const double *sp)
 see YARP documentation

IControlMode Interface
virtual bool getControlMode (int j, int *mode)
 see YARP documentation

virtual bool getControlModes (int *modes)
 see YARP documentation

virtual bool setImpedancePositionMode (int)
 TOMASSINO: I don't know what to put here, leaving empty.

virtual bool setImpedanceVelocityMode (int)
 TOMASSINO: I don't know what to put here, leaving empty.

virtual bool setOpenLoopMode (int j)
 see YARP documentation

virtual bool setPositionMode (int j)
 see YARP documentation

virtual bool setTorqueMode (int j)
 see YARP documentation

virtual bool setVelocityMode (int j)
 see YARP documentation

IEncoders Interface
virtual bool getEncoder (int j, double *v)
 see YARP documentation

virtual bool getEncoders (double *encs)
 see YARP documentation

virtual bool getEncoderAcceleration (int j, double *spds)
 see YARP documentation

virtual bool getEncoderAccelerations (double *accs)
 see YARP documentation

virtual bool getEncoderSpeed (int j, double *sp)
 see YARP documentation

virtual bool getEncoderSpeeds (double *spds)
 see YARP documentation

virtual bool resetEncoder (int j)
 see YARP documentation

virtual bool resetEncoders ()
 see YARP documentation

virtual bool setEncoder (int j, double val)
 see YARP documentation

virtual bool setEncoders (const double *vals)
 see YARP documentation

IControlLimits Interface
virtual bool getLimits (int axis, double *min, double *max)
 see YARP documentation

virtual bool setLimits (int axis, double min, double max)
 see YARP documentation

IControlLimitsRaw Interface
virtual bool getLimitsRaw (int axis, double *min, double *max)
 see YARP documentation

virtual bool setLimitsRaw (int axis, double min, double max)
 see YARP documentation

- Public Member Functions inherited from MotorController
 MotorController (World *world)
 constructor

virtual ~MotorController ()
 Destructor.

bool isEnabled ()
 return true is if enable (hence if it is on)

void setEnabled (bool b)
 Enable/Disable this motorcontroller.

World * world ()
 return the world

- Public Member Functions inherited from Ownable
 Ownable ()
 Constructor.

virtual ~Ownable ()
 Destructor.

const QList< Owned > & owned () const
 Returns the list of objects owned by this one.

Ownable * owner () const
 Returns the owner of this object.

void setOwner (Ownable *owner, bool destroy=true)
 Sets the owner of this object.


Additional Inherited Members

- Public Types inherited from Ownable
typedef QList< Owned > OwnedList
 The type for the list of owned objects.


Detailed Description

MultiMotorController class.

Motivation
This class allow to control the position or the velocity of a vector of PhyDOF
Description
It work in two modality: position and velocity.
Position Modality
It compute a minimum-jerk trajectory accordlying to the same equation implemented into iCub DSP chips.

\[ \Theta(t,T) = \left( 10\left(\frac{t}{T}\right)^3 - 15\left(\frac{t}{T}\right)^4 + 6\left(\frac{t}{T}\right)^5 \right) \left( x_f - x_0 \right) + x_0 + dx_0\left( \frac{t}{T} -6\left(\frac{t}{T}\right)^3 +8\left(\frac{t}{T}\right)^4 -3\left(\frac{t}{T}\right)^5 \right) \]

where $x_0$ if start position, $x_f$ final (desired) position, $T$ is the period on which movement will last and $dx_0$ is the velocity of joint when movement starts. The joints will be actuated in order to stay at position $\Theta(t,T)$ during the movement.
$T$ is calculated on the basis of reference speed (setRefSpeed) accordlying to following equation:

\[ T = \frac{\left| x_f - x_0 \right|}{ RefSpeed } \]

The time counter $t$ will resetted to zero at each positionMove calls and it span from 0 to $T$ incremented at each step of World::timeStep(), hence the total movement will require $\frac{T}{timeStep}$ steps to get completed.
The reference acceleration (RefAcceleration) will be used to know how much acceleration to set on motor during the movement.
Velocity Modality
It accelerate/decelerate the joint velocity in order to reach the desired setted by velocityMove without execeeding the reference acceleration setted (RelAcceleration)
Warnings

Definition at line 179 of file motorcontrollers.h.

Constructor & Destructor Documentation

MultiMotorController ( QVector< PhyDOF * >  motors,
World *  world
)

Constructor.

Parameters
dofsvector of TorqueMotors actuated by this controller

Definition at line 151 of file motorcontrollers.cpp.

References farsa::toRad().

~MultiMotorController ( )
virtual

Destructor.

Definition at line 210 of file motorcontrollers.cpp.

Member Function Documentation

bool checkMotionDone ( int  j,
bool *  flag
)
virtual

see YARP documentation

Definition at line 401 of file motorcontrollers.cpp.

bool checkMotionDone ( bool *  flag)
virtual

see YARP documentation

Definition at line 411 of file motorcontrollers.cpp.

bool close ( )
virtual

close

Definition at line 269 of file motorcontrollers.cpp.

bool configure ( yarp::os::Searchable &  config)
virtual

configure

Definition at line 273 of file motorcontrollers.cpp.

bool getAxes ( int *  ax)
virtual

see YARP documentation

Definition at line 279 of file motorcontrollers.cpp.

bool getControlMode ( int  j,
int *  mode
)
virtual

see YARP documentation

Definition at line 594 of file motorcontrollers.cpp.

bool getControlModes ( int *  modes)
virtual

see YARP documentation

Definition at line 602 of file motorcontrollers.cpp.

bool getEncoder ( int  j,
double *  v
)
virtual

see YARP documentation

Definition at line 629 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getEncoderAcceleration ( int  j,
double *  spds
)
virtual

see YARP documentation

Definition at line 675 of file motorcontrollers.cpp.

bool getEncoderAccelerations ( double *  accs)
virtual

see YARP documentation

Definition at line 679 of file motorcontrollers.cpp.

bool getEncoders ( double *  encs)
virtual

see YARP documentation

Definition at line 641 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getEncoderSpeed ( int  j,
double *  sp
)
virtual

see YARP documentation

Definition at line 652 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getEncoderSpeeds ( double *  spds)
virtual

see YARP documentation

Definition at line 664 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getLimits ( int  axis,
double *  min,
double *  max
)
virtual

see YARP documentation

Definition at line 697 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getLimitsRaw ( int  axis,
double *  min,
double *  max
)
virtual

see YARP documentation

Definition at line 723 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getRefAcceleration ( int  j,
double *  acc
)
virtual

see YARP documentation

Definition at line 494 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getRefAccelerations ( double *  accs)
virtual

see YARP documentation

Definition at line 506 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getRefSpeed ( int  j,
double *  ref
)
virtual

see YARP documentation

Definition at line 471 of file motorcontrollers.cpp.

References farsa::toDegree().

bool getRefSpeeds ( double *  spds)
virtual

see YARP documentation

Definition at line 483 of file motorcontrollers.cpp.

References farsa::toDegree().

QVector<PhyDOF*>& motors ( )
inline

return motors controlled

Definition at line 192 of file motorcontrollers.h.

bool open ( yarp::os::Searchable &  config)
virtual

open

Definition at line 265 of file motorcontrollers.cpp.

bool positionMove ( int  j,
double  ref
)
virtual

see YARP documentation

Definition at line 289 of file motorcontrollers.cpp.

References farsa::ramp(), and farsa::toRad().

bool positionMove ( const double *  refs)
virtual

see YARP documentation

Definition at line 318 of file motorcontrollers.cpp.

References farsa::ramp(), and farsa::toRad().

QVector<wPID*>& positionPIDs ( )
inline

return PID used for controlling motors with position modality

Definition at line 196 of file motorcontrollers.h.

bool relativeMove ( int  j,
double  delta
)
virtual

see YARP documentation

Definition at line 346 of file motorcontrollers.cpp.

References farsa::ramp(), and farsa::toRad().

bool relativeMove ( const double *  deltas)
virtual

see YARP documentation

Definition at line 374 of file motorcontrollers.cpp.

References farsa::ramp(), and farsa::toRad().

bool resetEncoder ( int  j)
virtual

see YARP documentation

Definition at line 613 of file motorcontrollers.cpp.

bool resetEncoders ( )
virtual

see YARP documentation

Definition at line 617 of file motorcontrollers.cpp.

bool setEnableLimitsRaw ( int  axis,
bool  b
)

Enable/disable the limits for the corresponding joint.

Definition at line 739 of file motorcontrollers.cpp.

Referenced by PhyiCub::PhyiCub().

bool setEncoder ( int  j,
double  val
)
virtual

see YARP documentation

Definition at line 621 of file motorcontrollers.cpp.

bool setEncoders ( const double *  vals)
virtual

see YARP documentation

Definition at line 625 of file motorcontrollers.cpp.

virtual bool setImpedancePositionMode ( int  )
inlinevirtual

TOMASSINO: I don't know what to put here, leaving empty.

Definition at line 277 of file motorcontrollers.h.

virtual bool setImpedanceVelocityMode ( int  )
inlinevirtual

TOMASSINO: I don't know what to put here, leaving empty.

Definition at line 279 of file motorcontrollers.h.

bool setLimits ( int  axis,
double  min,
double  max
)
virtual

see YARP documentation

Definition at line 683 of file motorcontrollers.cpp.

References farsa::max(), farsa::min(), and farsa::toRad().

Referenced by PhyiCub::PhyiCub().

bool setLimitsRaw ( int  axis,
double  min,
double  max
)
virtual

see YARP documentation

Definition at line 711 of file motorcontrollers.cpp.

References farsa::toRad().

Referenced by PhyiCub::PhyiCub().

bool setOpenLoopMode ( int  j)
virtual

see YARP documentation

Definition at line 609 of file motorcontrollers.cpp.

bool setPositionMode ( )
virtual

see YARP documentation

Definition at line 284 of file motorcontrollers.cpp.

bool setPositionMode ( int  j)
virtual

see YARP documentation

Definition at line 564 of file motorcontrollers.cpp.

bool setRefAcceleration ( int  j,
double  acc
)
virtual

see YARP documentation

Definition at line 448 of file motorcontrollers.cpp.

References farsa::toRad().

bool setRefAccelerations ( const double *  accs)
virtual

see YARP documentation

Definition at line 460 of file motorcontrollers.cpp.

References farsa::toRad().

bool setRefSpeed ( int  j,
double  sp
)
virtual

see YARP documentation

Definition at line 423 of file motorcontrollers.cpp.

References farsa::toRad().

bool setRefSpeeds ( const double *  spds)
virtual

see YARP documentation

Definition at line 436 of file motorcontrollers.cpp.

References farsa::toRad().

bool setTorqueMode ( int  j)
virtual

see YARP documentation

Definition at line 586 of file motorcontrollers.cpp.

bool setVelocityMode ( )
virtual

see YARP documentation

Definition at line 542 of file motorcontrollers.cpp.

bool setVelocityMode ( int  j)
virtual

see YARP documentation

Definition at line 575 of file motorcontrollers.cpp.

bool stop ( int  j)
virtual

see YARP documentation

Definition at line 517 of file motorcontrollers.cpp.

Referenced by PhyiCub::configurePosture().

bool stop ( )
virtual

see YARP documentation

Definition at line 530 of file motorcontrollers.cpp.

void update ( )
virtual

apply the torque on the basis of minimum-jerk trajectory

Implements MotorController.

Definition at line 217 of file motorcontrollers.cpp.

References World::timeStep(), and MotorController::world().

Referenced by PhyiCub::preUpdate().

bool velocityMove ( int  j,
double  sp
)
virtual

see YARP documentation

Definition at line 547 of file motorcontrollers.cpp.

References farsa::toRad().

bool velocityMove ( const double *  sp)
virtual

see YARP documentation

Definition at line 556 of file motorcontrollers.cpp.

References farsa::toRad().

QVector<wPID*>& velocityPIDs ( )
inline

return PID used for controlling motors with velocity modality

Definition at line 204 of file motorcontrollers.h.

The documentation for this class was generated from the following files:
