The base class for experiments. More...

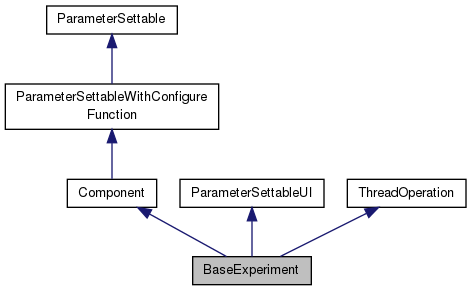

Inheritance diagram for BaseExperiment:

Classes
class	AbstractOperationWrapper
	The base abstract class for operation wrappers. More...
class	Notifee
	The class to receive notification of status changes.
class	OperationWrapper
	The class for operation wrappers. More...

Public Slots
virtual void	stopCurrentOperation (bool wait)
	Forces the end of the current operation, if threaded.
virtual void	stopCurrentOperation ()
	Forces the end of the current operation, if threaded.

Public Member Functions
	BaseExperiment ()
	Constructor.
virtual	~BaseExperiment ()
	Destructor.
virtual void	addAdditionalMenus (QMenuBar *menuBar)
	Adds additional menus to the menu bar of Total99.
void	changeInterval (unsigned long interval)
	Changes the delay between subsequent steps of a steppable operation.
virtual void	configure (ConfigurationParameters &params, QString prefix)
	Configures the object using a ConfigurationParameters object.
unsigned long	currentInterval () const
	Returns the current delay for steppable operations.
virtual void	fillActionsMenu (QMenu *actionsMenu)
	Fills the menu "Actions" of Total99.
const QVector < AbstractOperationWrapper * > &	getOperations () const
	Returns the list of operations.
virtual ParameterSettableUI *	getUIManager ()
	Returns an instance of the class handling our viewers.
DataUploaderDownloader < __BaseExperiment_internal::OperationStatus, __BaseExperiment_internal::OperationControl > *	getUploaderDownloader ()
	Returns the object to exchange data.
virtual QList < ParameterSettableUIViewer >	getViewers (QWidget *parent, Qt::WindowFlags flags)
	Returns the list of viewers.
void	pause ()
	Puts the current operation in pause.
virtual void	postConfigureInitialization ()
	This function is called after all linked objects have been configured.
void	resume ()
	Resumes the current operation if paused.
virtual void	run ()
	Runs the next operation.
virtual void	save (ConfigurationParameters &params, QString prefix)
	Saves the actual status of parameters into the ConfigurationParameters object passed.
void	step ()
	Performs a single step for the current steppable operation.
virtual void	stop ()
	Forces the end of the experiment.
Public Member Functions inherited from Component
	Component ()
	Constructor.
virtual	~Component ()
	Destructor.
void	setStatus (QString newStatus)
	used by subclasses to change the status of the experiment
QString	status ()
	return a text description of the current status of the component
virtual void	stopCurrentOperation ()=0
	Reimplement in subclasses to stop the running operation.
Public Member Functions inherited from ParameterSettableWithConfigureFunction
void	addObserver (RuntimeParameterObserver *obs)
T	getRuntimeParameter (QString paramName)
	ParameterSettable ()
void	removeObserver (RuntimeParameterObserver *obs)
void	setRuntimeParameter (QString paramName, T newvalue)
QString	typeName () const

Static Public Member Functions
static void	describe (QString type)
	Add to Factory::typeDescriptions() the descriptions of all parameters and subgroups.

Protected Member Functions
template<class T >
void	addOperation (QString name, void(T::*func)(), bool useSeparateThread, bool steppable=false)
	The function that adds the given operation to the list of all operations declared by the experiment.
bool	batchRunning () const
	Returns true if we are running in batch.
void	checkPause ()
	Performs a pause in the simulation if needed.
QList< QAction * >	getActionsForOperations (QObject *actionsParent) const
	Returns a list of actions, one for each operation declared by the experiment.
bool	stopSimulation ()
	Returns true if the simulation should stop as soon as possible.

Friends
class	Notifee
	The Notifee class is friend to access our private members and functions.

Additional Inherited Members
Public Types inherited from ParameterSettableWithConfigureFunction
enum	Property
Signals inherited from Component
void	statusChanged (QString newStatus)
	emitted when the status is changed
Public Attributes inherited from ParameterSettableWithConfigureFunction
	AllowMultiple
	Default
	IsList
	IsMandatory
Static Public Attributes inherited from ParameterSettableWithConfigureFunction
static const double	Infinity
static const int	MaxInteger
static const int	MinInteger
Static Protected Member Functions inherited from ParameterSettableWithConfigureFunction
static Descriptor	addTypeDescription (QString type, QString shortHelp, QString longHelp=QString(""))
static void	setGraphicalEditor (QString type)

Detailed Description

The base class for experiments.

Use this class as parent of experiments. This only provides some helper code to run operations in a worker thread and to add menus and guis to Total99. By using this you don't need to create a component and uimanager separately and you also have some ready-to-use code that supports different operations. When using this class you have to define which actions the class provides and to implement the function which execute the actions as QT slots. The code in this class takes care of adding the actions to Total99 menus and of starting the functions in a worker thread if they are supposed to. To add operations you can either call addOperation() or use the DECLARE_THREAD_OPERATION, DECLARE_STEPPABLE_THREAD_OPERATION or DECLARE_IMMEDIATE_OPERATION macro (see below for more information) and then implement the slot with the operation. Both addOperation and the macros should be called in the experiment constructor. Here is an example:

class MyExperiment : public BaseExperiment
{
    Q_OBJECT
public:
    MyExperiment();
    ~MyExperiment();
    virtual void configure(ConfigurationParameters& params, QString prefix);
    virtual void save(ConfigurationParameters& params, QString prefix);
    static void describe(QString type);
    virtual void postConfigureInitialization();
public slots:
    void run();
    void test();
    void otherOperation();
private:
    ...
};
// In implementation
MyExperiment::MyExperiment() :
    BaseExperiment(),
    ...
{
    DECLARE_STEPPABLE_THREAD_OPERATION(MyExperiment, run)
    DECLARE_THREAD_OPERATION(MyExperiment, test)
    DECLARE_IMMEDIATE_OPERATION(MyExperiment, otherOperation)
    ...
}

The difference between using the addOperation() function and the macros is that the function lets you define a custom name for the operation to be used in the Actions menù of Total99 but has a slightly more complex sintax, while the macros have a clearer syntax at the expense of some flexibility. As you can see from the example above, your experiment must inherit from BaseExperiment. The Experiment class must have a default constructor and the Q_OBJECT macro must be present. This class always adds a stop operation to stop the current actions as the first operation in the list. Operations can run in three possible modalities, each corresponding to one of the DECLARE_*_OPERATION macro (see the description of the addOperation() function for information about which parameters to use to obtain the various execution modalities):

run operation in a different thread (DECLARE_THREAD_OPERATION). In this case the function associated with the operation is run in a thread different from the one in which the BaseExperiment subclass instance lives (in Total99 components like BaseExperiment live in the GUI thread). This means that care has to be taken when exchanging data with the GUI (e.g. using the facilities of the classes described in dataexchange.h), but also that the operation doesn't lock the GUI thread, When implementing this kind of operations, the stopSimulation() function should be called regularly to check if a premature end of the operation has been requested;
run operation in a different thread and provide the possibility to run step-by-step (DECLARE_STEPPABLE_THREAD_OPERATION). This is the same as the modality above (DECLARE_THREAD_OPERATION) with the additional possiblity to pause the operation, perform single steps or put a delay between two consecutive steps. How steps are defined is left to the implementation: a step is the portion of code between two subsequent calls to the checkPause() function;
run operation immediately (DECLARE_IMMEDIATE_OPERATION). In this case the operation is run in the same thread of the BaseExperiment subclass instance. This means that the execution of the operation is like a classical function call: if the object lives in the GUI thread the GUI will be non-responsive until the operation has finished executing. Because of this, this modality should be used only for short operations If the experiment needs one or more GUIs you can re-implement the getViewers() function (which is the same as ParameterSettableUI::getViewers) to return the list of available widgets. The default implementation of this function creates BaseExperimentGUI to control the base experiment execution, so if you want that GUI remember to call BaseExperiment::getViewers() when reimplementing that function. If more menus are required, the experiment can re-implement the addAdditionalMenus() function (which is the same as ParameterSettableUI::addAdditionalMenus())

Note: Most of the functions of this class are NOT thread-safe, so you should not call them from slots implementing thread operations. If a function is thread safe, the function documentation states it explicitly; When in subclasses you have threaded operations, you must be sure that no operation is running (e.g. by calling stopCurrentOperation()) before destroying the object. In fact the thread is stopped in BaseExperiment destructor, but subclasses destructor is called before the one of BaseExperiment, so you could end up deleting stuffs while an operation is still running.

Definition at line 253 of file baseexperiment.h.

Constructor & Destructor Documentation

BaseExperiment ( )

Constructor.

Definition at line 141 of file baseexperiment.cpp.

References BaseExperiment::addOperation(), DataUploaderDownloader< class, class >::checkAssociationBeforeUpload(), and BaseExperiment::stopCurrentOperation().

~BaseExperiment ( )

virtual

Destructor.

Before destroyng subclasses, you must be sure no operation is running. You can call stopCurrentOperation() to make sure this is true

Definition at line 170 of file baseexperiment.cpp.

Member Function Documentation

void addAdditionalMenus ( QMenuBar * menuBar )

virtual

Adds additional menus to the menu bar of Total99.

Parameters

menuBar the menu bar of the Total99 application

Reimplemented from ParameterSettableUI.

Definition at line 233 of file baseexperiment.cpp.

Referenced by BaseExperimentUIManager::addAdditionalMenus().

void addOperation	(	QString	name,
		void(T::*)()	func,
		bool	useSeparateThread,
		bool	steppable = `false`
	)

inlineprotected

The function that adds the given operation to the list of all operations declared by the experiment.

This function should be called in the constructor to declare all operations provided by the class. The DECLARE_*_OPERATION macros simply call this functions with the proper parameters. Here is the correspondence between parameters of this functions and the DECLARE_*_OPERATION macros:

useSeparateThread = false is like using the DECLARE_IMMEDIATE_OPERATION
useSeparateThread = true AND steppable = false is like using DECLARE_THREAD_OPERATION

useSeparateThread = true AND steppable = true is like using DECLARE_STEPPABLE_THREAD_OPERATION

Parameters

name	the name of the operations
func	the function implementing the operation (which should be a slot)
useSeparateThread	if true the action is run in a separate thread, if false it is run in the thread of the caller
steppable	if useSeparateThread is true and this is also true, the operation is steppable.

Definition at line 697 of file baseexperiment.h.

References OperationStatus::NewOperation.

Referenced by BaseExperiment::BaseExperiment().

bool batchRunning ( ) const

protected

Returns true if we are running in batch.

Returns: true if we are running in batch

Definition at line 346 of file baseexperiment.cpp.

void changeInterval ( unsigned long interval )

Changes the delay between subsequent steps of a steppable operation.

This only affects steppable operations. The default value of the delay is 0

Parameters

interval the new delay in milliseconds

Note: this function is thread-safe

Definition at line 295 of file baseexperiment.cpp.

void checkPause ( )

protected

Performs a pause in the simulation if needed.

Use this function to implement a steppable operation, calling it at the end of each step. This function will pause, sleep for a while or return immediately depending on how the simulation is run

Note: This function is thread-safe

Definition at line 358 of file baseexperiment.cpp.

References OperationStatus::OperationPaused, and OperationStatus::OperationResumed.

void configure	(	ConfigurationParameters &	params,
		QString	prefix
	)

virtual

Configures the object using a ConfigurationParameters object.

Parameters

params	the configuration parameters object with parameters to use
prefix	the prefix to use to access the object configuration parameters. This is guaranteed to end with the separator character when called by the factory, so you don't need to add one

Implements Component.

Definition at line 181 of file baseexperiment.cpp.

References ConfigurationHelper::getBool().

unsigned long currentInterval ( ) const

Returns the current delay for steppable operations.

Returns: the current delay for steppable operations

Definition at line 300 of file baseexperiment.cpp.

Referenced by BaseExperimentGUI::BaseExperimentGUI().

void describe ( QString type )

static

Add to Factory::typeDescriptions() the descriptions of all parameters and subgroups.

It's mandatory in all subclasses where configure and save methods have been re-implemented for dealing with new parameters and subgroups to also implement the describe method

Parameters

type is the name of the type regarding the description. The type is used when a subclass reuse the description of its parent calling the parent describe method passing the type of the subclass. In this way, the result of the method describe of the parent will be the addition of the description of the parameters of the parent class into the type of the subclass

Reimplemented from ParameterSettableWithConfigureFunction.

Definition at line 194 of file baseexperiment.cpp.

References ParameterSettableWithConfigureFunction::addTypeDescription().

void fillActionsMenu ( QMenu * actionsMenu )

virtual

Fills the menu "Actions" of Total99.

This function takes care of filling the menu "Actions" of Total99 with the actions declared by Experiment

Parameters

actionsMenu the "Actions" menu in Total99

Note: You should not override this function unless you have particular needings

Reimplemented from ParameterSettableUI.

Definition at line 212 of file baseexperiment.cpp.

References BaseExperiment::getActionsForOperations().

Referenced by BaseExperimentUIManager::fillActionsMenu().

QList< QAction * > getActionsForOperations ( QObject * actionsParent ) const

protected

Returns a list of actions, one for each operation declared by the experiment.

This function can be used if you decide to re-implement the fillActionsMenu function to obtain the list of actions without filling the menu

Parameters

actionsParent the parent of generated QActions

Returns: The list of actions, one for each operation declared by the experiment

Definition at line 326 of file baseexperiment.cpp.

Referenced by BaseExperiment::fillActionsMenu().

const QVector< BaseExperiment::AbstractOperationWrapper * > & getOperations ( ) const

Returns the list of operations.

Returns: the list of operations

Definition at line 305 of file baseexperiment.cpp.

ParameterSettableUI * getUIManager ( )

virtual

Returns an instance of the class handling our viewers.

This returns a pointer to the ParameterSettableUI object. That object simply calls functions in this class

Returns: a pointer to the ParameterSettableUI object

Note: You should not override this function

Reimplemented from ParameterSettableWithConfigureFunction.

Definition at line 207 of file baseexperiment.cpp.

DataUploaderDownloader< __BaseExperiment_internal::OperationStatus, __BaseExperiment_internal::OperationControl > * getUploaderDownloader ( )

Returns the object to exchange data.

This is public so that it is possible to use a custom GUI (in that case the getViewers() function must be overridden to prevent returning a BaseExperimentGUI)

Returns: a pointer to the object to exchange data

Definition at line 310 of file baseexperiment.cpp.

QList< ParameterSettableUIViewer > getViewers	(	QWidget *	parent,
		Qt::WindowFlags	flags
	)

virtual

Returns the list of viewers.

Override this function to return the list of all viewers for this experiment. The default implementation adds the BaseExperimentGUI widget, so call this function in subclasses if you want that window

Parameters

parent	the parent widget for all viewers created by this function
flags	the window flags to specify when constructing the widgets

Returns: the list of widgets

Reimplemented from ParameterSettableUI.

Definition at line 222 of file baseexperiment.cpp.

Referenced by BaseExperimentUIManager::getViewers().

void pause ( )

Puts the current operation in pause.

This only works for steppable operations

Note: this function is thread-safe

Definition at line 265 of file baseexperiment.cpp.

void postConfigureInitialization ( )

virtual

This function is called after all linked objects have been configured.

See the description of the ConfigurationParameters class for more information. This starts the inner thread

Reimplemented from ParameterSettableWithConfigureFunction.

Definition at line 199 of file baseexperiment.cpp.

References Component::setStatus().

void resume ( )

Resumes the current operation if paused.

The operation must be paused, otherwise this function does nothing

Note: this function is thread-safe

Definition at line 282 of file baseexperiment.cpp.

void run ( )

virtual

Runs the next operation.

This simply runs the next operation

Note: You should not override this method

Implements ThreadOperation.

Definition at line 238 of file baseexperiment.cpp.

References OperationStatus::OperationEnded, and OperationStatus::OperationStarted.

void save	(	ConfigurationParameters &	params,
		QString	prefix
	)

virtual

Saves the actual status of parameters into the ConfigurationParameters object passed.

Parameters

params	the configuration parameters object on which to save the actual parameters
prefix	the prefix to use to access the object configuration parameters

Implements Component.

Definition at line 188 of file baseexperiment.cpp.

References ConfigurationParameters::startObjectParameters().

void step ( )

Performs a single step for the current steppable operation.

The steppable operation must be paused, otherwise this function does nothing

Note: this function is thread-safe

Definition at line 273 of file baseexperiment.cpp.

void stop ( )

virtual

Forces the end of the experiment.

This is the implementation of the stop() function of ThreadOperation. If the opeation is sleeping, it is also resumed

Note: You should not override this method

Implements ThreadOperation.

Definition at line 254 of file baseexperiment.cpp.

void stopCurrentOperation ( bool wait )

virtualslot

Forces the end of the current operation, if threaded.

This is a slot

Parameters

wait	if true waits for operation to actually stop, otherwise returns immediately

Definition at line 315 of file baseexperiment.cpp.

void stopCurrentOperation ( )

virtualslot

Forces the end of the current operation, if threaded.

This is a slot. This calls stopCurrentOperation(false)

Definition at line 321 of file baseexperiment.cpp.

Referenced by BaseExperiment::BaseExperiment().

bool stopSimulation ( )

protected

Returns true if the simulation should stop as soon as possible.

Returns: true if the simulation should stop as soon as possible

Note: This function is thread-safe

Definition at line 351 of file baseexperiment.cpp.

Friends And Related Function Documentation

friend class Notifee

friend

The Notifee class is friend to access our private members and functions.

Definition at line 301 of file baseexperiment.h.

The documentation for this class was generated from the following files:

experiments/include/baseexperiment.h
experiments/src/baseexperiment.cpp

Experiments - 1.4.5

Classes

Public Slots

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
