The base abstract class for devices (sensors and motors) with noise. More...

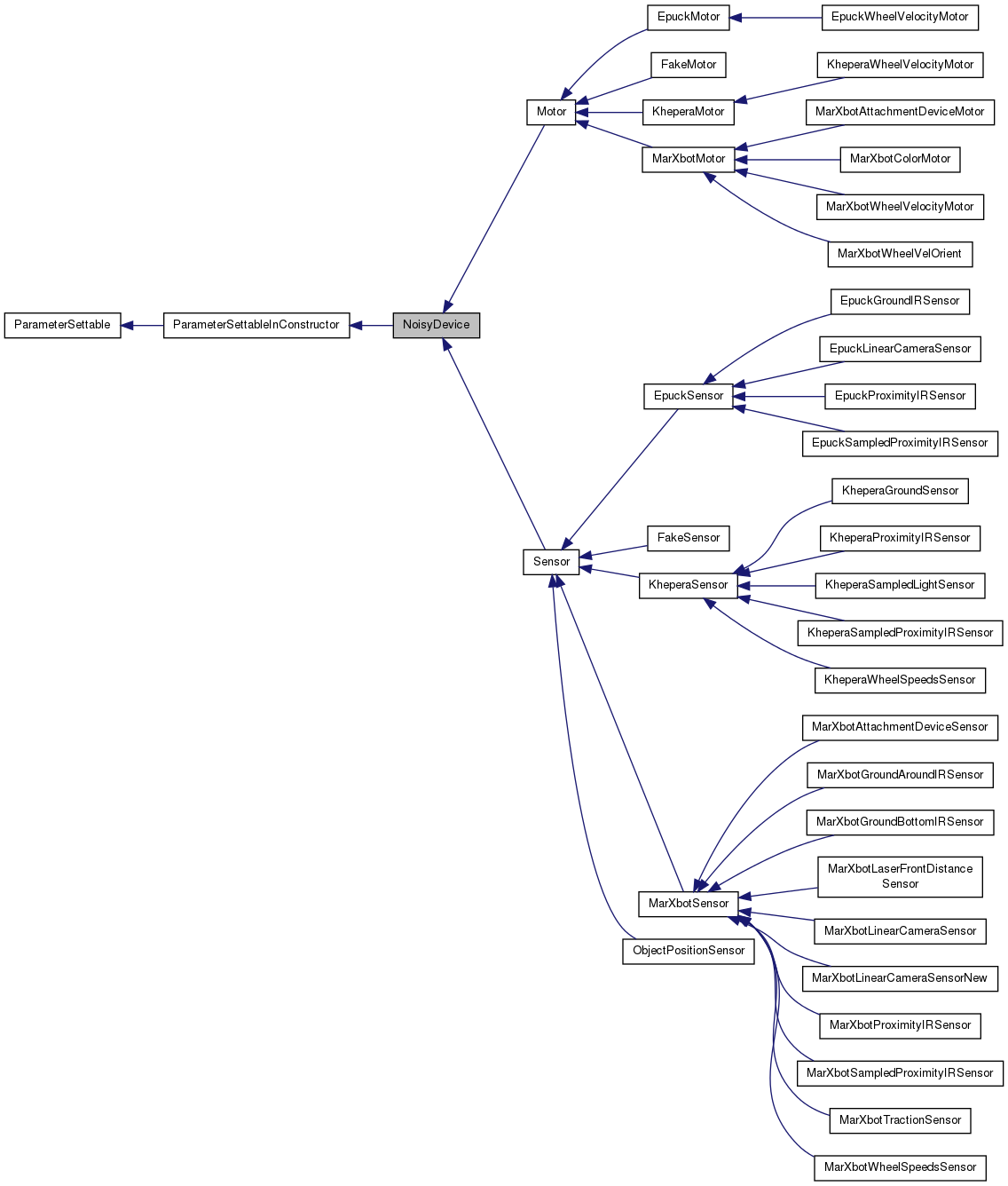

Inheritance diagram for NoisyDevice:

Public Member Functions
	NoisyDevice (ConfigurationParameters &params, QString prefix)
	Constructor and Configure.
	~NoisyDevice ()
	Destructor.
void	save (ConfigurationParameters &params, QString prefix)
	Save the parameters into the ConfigurationParameters.
Public Member Functions inherited from ParameterSettableInConstructor
	ParameterSettableInConstructor (ConfigurationParameters &, QString)
void	addObserver (RuntimeParameterObserver *obs)
T	getRuntimeParameter (QString paramName)
virtual ParameterSettableUI *	getUIManager ()
	ParameterSettable ()
virtual void	postConfigureInitialization ()
void	removeObserver (RuntimeParameterObserver *obs)
void	setRuntimeParameter (QString paramName, T newvalue)
QString	typeName () const

Static Public Member Functions
static void	describe (QString type)
	Describe all the parameter for configuring the Sensor.
Static Public Member Functions inherited from ParameterSettableInConstructor
static QString	fullParameterDescriptionPath (QString type, QString param)
static QString	fullSubgroupDescriptionPath (QString type, QString sub)

Protected Member Functions
double	applyNoise (double v, double minValue, double maxValue) const
	Adds noise to the value.
Protected Member Functions inherited from ParameterSettableInConstructor
void	notifyChangesToParam (QString paramName)

Additional Inherited Members
Public Types inherited from ParameterSettableInConstructor
enum	Property
Public Attributes inherited from ParameterSettableInConstructor
	AllowMultiple
	Default
	IsList
	IsMandatory
Static Public Attributes inherited from ParameterSettableInConstructor
static const double	Infinity
static const int	MaxInteger
static const int	MinInteger
Static Protected Member Functions inherited from ParameterSettableInConstructor
static Descriptor	addTypeDescription (QString type, QString shortHelp, QString longHelp=QString(""))
static void	setGraphicalEditor (QString type)

Detailed Description

The base abstract class for devices (sensors and motors) with noise.

This class provides parameters and a function to add noise. You can add either uniform noise or gaussian noise in a range. The parameters regarding noise are:

noiseType: set to either NoNoise, Uniform or Gaussian to select the type of distribution of noise (respectively no noise, uniform noise in a range or gaussian noise)
noiseRange: the range of noise. For uniform noise this is the actual range, (the distribution has zero mean and goes from -noiseRange/2 to noiseRange/2). For gaussian noise, this is four times the standard deviation (the distribution has zero mean and noiseRange/4 standard deviation: this means that about 95% of the values taken from the distribution will be between -noiseRange/2 and noiseRange/2) To apply noise in the code you have to use the applyNoise() function. The function takes the value to which noise should be applied and the expected range of the value and returns the value with added noise.

Definition at line 113 of file neuroninterfaces.h.

Constructor & Destructor Documentation

NoisyDevice	(	ConfigurationParameters &	params,
		QString	prefix
	)

Constructor and Configure.

Parameters

params	is the ConfigurationParameters containing the parameters
prefix	is the path prefix to the paramters for this Sensor

Definition at line 31 of file neuroninterfaces.cpp.

References ConfigurationHelper::getDouble(), ConfigurationHelper::getString(), ConfigurationParameters::getValue(), and ConfigurationHelper::throwUserConfigError().

~NoisyDevice ( )

Destructor.

Definition at line 66 of file neuroninterfaces.cpp.

Member Function Documentation

double applyNoise	(	double	v,
		double	minValue,
		double	maxValue
	)		const

protected

Adds noise to the value.

This function applies the noise as configured by configuration parameters. If minValue > maxValue no check on boundaries is performed (i.e. we don't restrict the value obtained after applying noise)

Parameters
