Sensor Class Reference

The base abstract class for the Sensor hierarchy. More...

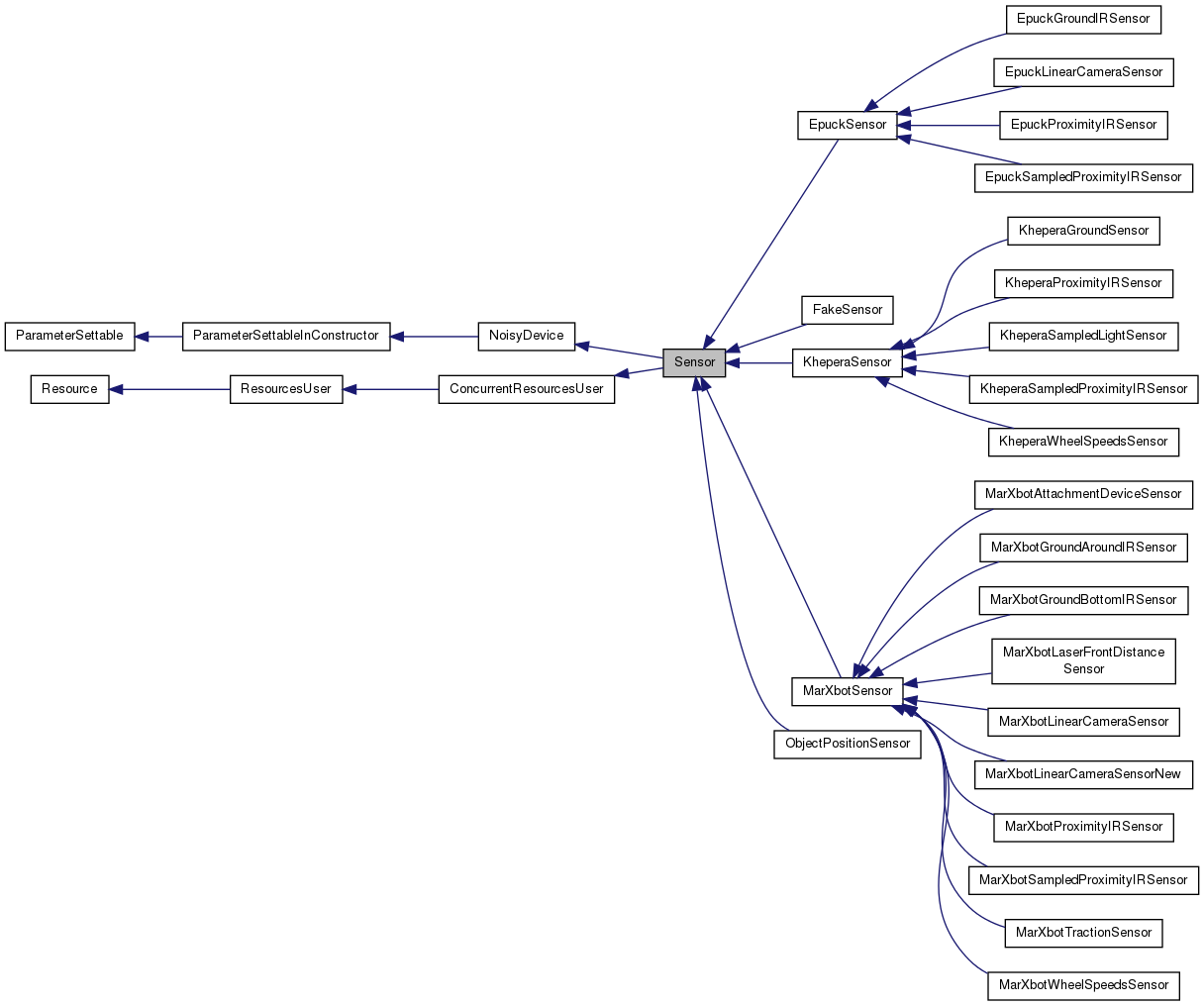

Inheritance diagram for Sensor:

Public Member Functions
	Sensor (ConfigurationParameters &params, QString prefix)
	Constructor and Configure.
	~Sensor ()
	Destructor.
QString	name ()
	Return the name of the Sensor.
void	save (ConfigurationParameters &params, QString prefix)
	Save the parameters into the ConfigurationParameters.
void	setName (QString name)
	Use this method for changing the name of the Sensor.
virtual int	size ()=0
	Return the number of neurons on which the Sensor will set the input.
virtual void	update ()=0
	Update the state of the Sensor every time step; the actual behaviour is implemented in subclasses.
Public Member Functions inherited from NoisyDevice
	NoisyDevice (ConfigurationParameters &params, QString prefix)
	Constructor and Configure.
	~NoisyDevice ()
	Destructor.
Public Member Functions inherited from ParameterSettableInConstructor
	ParameterSettableInConstructor (ConfigurationParameters &, QString)
void	addObserver (RuntimeParameterObserver *obs)
T	getRuntimeParameter (QString paramName)
virtual ParameterSettableUI *	getUIManager ()
	ParameterSettable ()
virtual void	postConfigureInitialization ()
void	removeObserver (RuntimeParameterObserver *obs)
void	setRuntimeParameter (QString paramName, T newvalue)
QString	typeName () const
Public Member Functions inherited from ConcurrentResourcesUser
void	addUsableResource (QString resource)
void	addUsableResources (QStringList resources)
void	declareResource (QString name, T *resource, QString lockBuddy="")
void	deleteResource (QString name)
T *	getResource (QString name, bool *resourceExists=NULL)
bool	hasResource (QString name) const
void	removeAllUsableResources ()
void	removeUsableResource (QString resource)
void	removeUsableResources (QStringList resources)
virtual void	shareResourcesWith (ResourcesUser *buddy)
void	usableResources (QStringList resources)
bool	usedResourcesExist (QStringList *nonExistingResources=NULL) const

Static Public Member Functions
static void	describe (QString type)
	Describe all the parameter for configuring the Sensor.

Protected Member Functions
QString	actualResourceNameForMultirobot (QString resourceName) const
	Returns the actual resource name to use.
void	checkAllNeededResourcesExist ()
	Checks whether all resources we need are existing and throws an exception if they aren't.
void	resetNeededResourcesCheck ()
	Resets the check on needed resources so that the next call to checkAllNeededResourcesExist() will perform the full check and not the quick one.
Protected Member Functions inherited from NoisyDevice
double	applyNoise (double v, double minValue, double maxValue) const
	Adds noise to the value.
Protected Member Functions inherited from ParameterSettableInConstructor
void	notifyChangesToParam (QString paramName)
Protected Member Functions inherited from ConcurrentResourcesUser
T *	getResource ()
virtual void	notifyResourceChange (ResourceHandler *resource, ResourceChangeType changeType)=0
ResourcesUser &	operator= (const ResourcesUser &other)
virtual void	resourceChanged (QString name, ResourceChangeType changeType)
	ResourcesUser ()
	ResourcesUser (const ResourcesUser &other)

Additional Inherited Members
Public Types inherited from ParameterSettableInConstructor
enum	Property
Public Types inherited from ConcurrentResourcesUser
typedef Resource::ResourceChangeType	ResourceChangeType
Public Attributes inherited from ParameterSettableInConstructor
	AllowMultiple
	Default
	IsList
	IsMandatory
Static Public Attributes inherited from ParameterSettableInConstructor
static const double	Infinity
static const int	MaxInteger
static const int	MinInteger
Static Protected Member Functions inherited from ParameterSettableInConstructor
static Descriptor	addTypeDescription (QString type, QString shortHelp, QString longHelp=QString(""))
static void	setGraphicalEditor (QString type)
Protected Attributes inherited from ConcurrentResourcesUser
ResourceCollectionHolder	m_resources

Detailed Description

The base abstract class for the Sensor hierarchy.

A Sensor is an object that read data from a resource and put that data into the neural network converting it into the appropriate way. This class inherits from NoisyDevice, so you can apply noise using the applyNoise() function. In child class implement also the resourceChanged() function to get notified of resources creation/modification

Definition at line 207 of file neuroninterfaces.h.

Constructor & Destructor Documentation

Sensor	(	ConfigurationParameters &	params,
		QString	prefix
	)

Constructor and Configure.

Parameters

params	is the ConfigurationParameters containing the parameters
prefix	is the path prefix to the paramters for this Sensor

Definition at line 123 of file neuroninterfaces.cpp.

References ConfigurationHelper::getString(), and Sensor::setName().

~Sensor

(

)

Destructor.

Definition at line 131 of file neuroninterfaces.cpp.

Member Function Documentation

QString actualResourceNameForMultirobot ( QString  resourceName ) const

protected

Returns the actual resource name to use.

This function mangles the name of the resource so that the correct name is used in case of multirobot setups. NOTE: use this only for resources that are robot-specific because the name is always mangled (no check is done to see if resourceName is already the name of an existing resource)

Definition at line 185 of file neuroninterfaces.cpp.

Referenced by EpuckSensor::EpuckSensor(), KheperaSensor::KheperaSensor(), and MarXbotSensor::MarXbotSensor().

void checkAllNeededResourcesExist ( )

protected

Checks whether all resources we need are existing and throws an exception if they aren't.

The result of the check is stored, so subsequent calls to this functions are quick (unless you call resetNeededResourcesCheck(), see that function description)

Definition at line 165 of file neuroninterfaces.cpp.

References ConfigurationHelper::throwUserMissingResourceError(), and ConcurrentResourcesUser::usedResourcesExist().

Referenced by FakeSensor::update(), EpuckProximityIRSensor::update(), KheperaProximityIRSensor::update(), ObjectPositionSensor::update(), MarXbotProximityIRSensor::update(), EpuckGroundIRSensor::update(), KheperaSampledProximityIRSensor::update(), MarXbotGroundBottomIRSensor::update(), EpuckLinearCameraSensor::update(), MarXbotGroundAroundIRSensor::update(), KheperaSampledLightSensor::update(), EpuckSampledProximityIRSensor::update(), MarXbotLinearCameraSensor::update(), KheperaGroundSensor::update(), KheperaWheelSpeedsSensor::update(), MarXbotLinearCameraSensorNew::update(), MarXbotTractionSensor::update(), MarXbotSampledProximityIRSensor::update(), MarXbotAttachmentDeviceSensor::update(), MarXbotWheelSpeedsSensor::update(), and MarXbotLaserFrontDistanceSensor::update().

void describe ( QString  type )

static

Describe all the parameter for configuring the Sensor.

Reimplemented from NoisyDevice.

Reimplemented in MarXbotLaserFrontDistanceSensor, MarXbotWheelSpeedsSensor, MarXbotAttachmentDeviceSensor, MarXbotSampledProximityIRSensor, MarXbotTractionSensor, MarXbotLinearCameraSensorNew, KheperaWheelSpeedsSensor, KheperaGroundSensor, MarXbotLinearCameraSensor, EpuckSampledProximityIRSensor, KheperaSampledLightSensor, MarXbotGroundAroundIRSensor, EpuckLinearCameraSensor, MarXbotGroundBottomIRSensor, KheperaSampledProximityIRSensor, EpuckGroundIRSensor, MarXbotProximityIRSensor, ObjectPositionSensor, EpuckProximityIRSensor, KheperaProximityIRSensor, MarXbotSensor, EpuckSensor, KheperaSensor, and FakeSensor.

Definition at line 148 of file neuroninterfaces.cpp.

References ParameterSettableInConstructor::addTypeDescription(), ParameterSettable::Descriptor::describeString(), and ParameterSettable::StringDescriptor::help().

QString name

(

)

Return the name of the Sensor.

Typically, it is the name of the subclass

Definition at line 157 of file neuroninterfaces.cpp.

Referenced by ObjectPositionSensor::ObjectPositionSensor(), FakeSensor::resourceChanged(), ObjectPositionSensor::resourceChanged(), Sensor::setName(), FakeSensor::update(), KheperaProximityIRSensor::update(), EpuckProximityIRSensor::update(), ObjectPositionSensor::update(), MarXbotProximityIRSensor::update(), EpuckGroundIRSensor::update(), KheperaSampledProximityIRSensor::update(), MarXbotGroundBottomIRSensor::update(), EpuckLinearCameraSensor::update(), MarXbotGroundAroundIRSensor::update(), KheperaSampledLightSensor::update(), EpuckSampledProximityIRSensor::update(), MarXbotLinearCameraSensor::update(), KheperaGroundSensor::update(), KheperaWheelSpeedsSensor::update(), MarXbotLinearCameraSensorNew::update(), MarXbotTractionSensor::update(), MarXbotSampledProximityIRSensor::update(), MarXbotAttachmentDeviceSensor::update(), MarXbotWheelSpeedsSensor::update(), and MarXbotLaserFrontDistanceSensor::update().

void resetNeededResourcesCheck ( )

protected

Resets the check on needed resources so that the next call to checkAllNeededResourcesExist() will perform the full check and not the quick one.

Call this if you get notified that a resource has been deleted so that we can check if it is available again when you need it

Definition at line 180 of file neuroninterfaces.cpp.

Referenced by EpuckSensor::resourceChanged(), KheperaSensor::resourceChanged(), MarXbotSensor::resourceChanged(), FakeSensor::resourceChanged(), and ObjectPositionSensor::resourceChanged().

void save ( ConfigurationParameters &  params, QString  prefix  )

virtual

Save the parameters into the ConfigurationParameters.

Parameters

params	is the ConfigurationParameters where save the parameters
prefix	is the path prefix for the parameters to save

Reimplemented from NoisyDevice.

Reimplemented in MarXbotLaserFrontDistanceSensor, MarXbotWheelSpeedsSensor, MarXbotAttachmentDeviceSensor, MarXbotSampledProximityIRSensor, MarXbotTractionSensor, MarXbotLinearCameraSensorNew, KheperaWheelSpeedsSensor, KheperaGroundSensor, MarXbotLinearCameraSensor, EpuckSampledProximityIRSensor, KheperaSampledLightSensor, MarXbotGroundAroundIRSensor, EpuckLinearCameraSensor, MarXbotGroundBottomIRSensor, KheperaSampledProximityIRSensor, EpuckGroundIRSensor, ObjectPositionSensor, MarXbotProximityIRSensor, EpuckProximityIRSensor, KheperaProximityIRSensor, MarXbotSensor, EpuckSensor, KheperaSensor, and FakeSensor.

Definition at line 134 of file neuroninterfaces.cpp.

References ConfigurationParameters::createParameter(), and ConfigurationParameters::startObjectParameters().

void setName

(

QString

name

)

Use this method for changing the name of the Sensor.

Definition at line 161 of file neuroninterfaces.cpp.

References Sensor::name().

Referenced by Sensor::Sensor().

virtual int size ( )

pure virtual

Return the number of neurons on which the Sensor will set the input.

Warning

this method has to be called in any situation; when re-implement it does not rely on conditions/variables available only after the initilization because this method might be called before the Sensor initialization

Implemented in MarXbotLaserFrontDistanceSensor, MarXbotWheelSpeedsSensor, MarXbotAttachmentDeviceSensor, MarXbotSampledProximityIRSensor, MarXbotTractionSensor, MarXbotLinearCameraSensorNew, KheperaWheelSpeedsSensor, KheperaGroundSensor, MarXbotLinearCameraSensor, EpuckSampledProximityIRSensor, KheperaSampledLightSensor, MarXbotGroundAroundIRSensor, EpuckLinearCameraSensor, MarXbotGroundBottomIRSensor, KheperaSampledProximityIRSensor, EpuckGroundIRSensor, MarXbotProximityIRSensor, EpuckProximityIRSensor, KheperaProximityIRSensor, ObjectPositionSensor, and FakeSensor.

virtual void update ( )

pure virtual

Update the state of the Sensor every time step; the actual behaviour is implemented in subclasses.

Implemented in MarXbotLaserFrontDistanceSensor, MarXbotWheelSpeedsSensor, MarXbotAttachmentDeviceSensor, MarXbotSampledProximityIRSensor, MarXbotTractionSensor, MarXbotLinearCameraSensorNew, KheperaWheelSpeedsSensor, KheperaGroundSensor, MarXbotLinearCameraSensor, EpuckSampledProximityIRSensor, KheperaSampledLightSensor, MarXbotGroundAroundIRSensor, EpuckLinearCameraSensor, MarXbotGroundBottomIRSensor, KheperaSampledProximityIRSensor, EpuckGroundIRSensor, MarXbotProximityIRSensor, ObjectPositionSensor, EpuckProximityIRSensor, KheperaProximityIRSensor, and FakeSensor.

---

The documentation for this class was generated from the following files:

• experiments/include/neuroninterfaces.h
• experiments/src/neuroninterfaces.cpp
